Our Solutions



Products and Solutions

Our proprietary EnCap™ metalizing process results in electrically conductive textiles that are lightweight and flexible with limitless application potential.

STM materials deliver best-in-class conductivity, durability, reliability and repeatability for maximum performance and lifecycle value.

Click the categories below to learn more about STM’s product families and our ability to provide custom solutions for your specific application requirements.

  • Custom Solutions

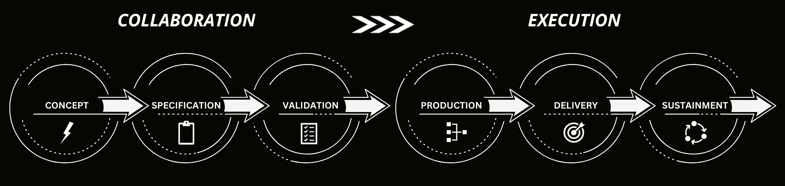

    STM’s goal is to find the best solutions by partnering with our clients during the early stages of new product development. This collaborative approach to product development reduces total cost, time and risk.

    STM’s engineering team can make recommendations and provide your team with the support required to ensure a smooth product development process from concept through delivery.

    Our process can support the development of custom solutions ranging from slight modifications of existing products to creating entirely new solutions by leveraging our expertise, technology and manufacturing excellence.

    Contact us to discuss your specific application requirement

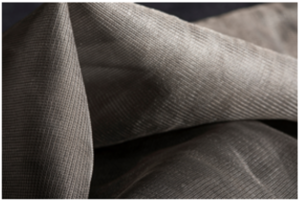

  • Conductive Knit Materials

    STM’s produces a number of conductive knit materials. Our ultra lightweight silver-coated tricot knits range from 0.7 to 1.5 oz. per yd². We also offer silver-coated jersey knit, continuous loop and spandex ranging from 3.7 to 5.2 oz. per yd².

    These materials are exceptionally breathable and suitable for uses ranging from advanced aerospace applications which are subject to harsh environmental exposure to wearable medical devices where biocompatibility and anti-microbial properties may be required.

    SMS-0106

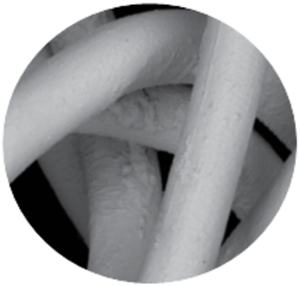

    SMS-0106 at 1,000x magnification

    Click to request a sample

    Click to view material specifications

  • Conductive Woven Materials

    STM’s conductive woven materials are available in silver only and silver with nickel for added durability, corrosion resistance and conductivity.

    Our standard rip stop and taffeta fabrics are characterized by a tightly woven construction and high tensile strength, with weights ranging from 1.4 to 2.4 oz. per yd² and shielding effectiveness of -65 dB at 1 GHz.

    These materials are capable of performing through harsh environmental exposure, while maintaining exceptional breathability. These characteristics make our conductive woven materials suitable for uses ranging from flexible sensors and circuits to EMI shielding gaskets to architectural shielding.

    SMS-0115

    SMS-0115 at 1,000x magnification

    Click to request a sample

    Click to view material specifications

  • Conductive Non-Woven Materials

    STM’s conductive non-woven materials are available in silver only and silver with nickel for added conductivity, durability and corrosion resistance.

    Our non-woven fabrics are constructed of randomized fibers and thermally bonded, which provides excellent dimensional stability, mechanical durability and EMI shielding performance. Materials range from 2.0 – 5.0 oz. per yd² depending on base fabric weight and coatings.

    These characteristics make our conductive non-woven materials suitable for uses including high performance architectural shielding applications to EMI/RF shielding bags and pouches.

    SMS-0113

    SMS-0113 at 100x magnification

    Click to request a sample

    Click to view material specifications

  • Conductive Hook & Loop

    STM’s silver-coated hook and loop materials provide an electrical resistivity of 0.02 Ω·cm. This enables a highly conductive method of attachment and the ability to main excellent conductivity across joints and seams.

    Our hook and loop materials are available in 1” and 2” standard widths and have a proprietary coating, which provides enhanced durability.

    SMS-0102 & SMS-0103

    SMS-0103 at 200x magnification

    Click to request a sample

    Click to view material specifications

  • Applicable Products by Industry

    • Aerospace

      Applications Knits Wovens Non-Wovens Hook & Loop
      Composite Integration ◈ ◈ ◈
      Conductive Ground Plane ◈ ◈ ◈
      EMI Gaskets ◈ ◈ ◈
      EMI/RF Signal Management ◈ ◈
      Electronic Component Shielding ◈ ◈ ◈
      Electrostatic Discharge Protection ◈ ◈ ◈ ◈
      Lightning Strike Protection ◈ ◈ ◈

    • Architectural Shielding

      Applications Knits Wovens Non-Wovens Hook & Loop
      Faraday Cage Applications ◈ ◈ ◈ ◈
      General Architectural Shielding ◈ ◈
      Laboratory Shielding ◈ ◈
      Portable and Fixed Shielded Enclosures ◈ ◈ ◈
      SCIF Shielding ◈ ◈
      Wall Coverings ◈ ◈
      Window Coverings ◈ ◈ ◈

    • Defense

      Applications Knits Wovens Non-Wovens Hook & Loop
      Composite Integration ◈ ◈ ◈
      Conductive Ground Plane ◈ ◈ ◈
      EMI/RF Signal Management ◈ ◈
      Portable and Fixed Shielded Enclosures ◈ ◈ ◈
      SCIF Shielding ◈ ◈
      Shielded Bags/Cases/Pouches ◈ ◈ ◈

    • Medical

      Applications Knits Wovens Non-Wovens Hook & Loop
      Cardiac Defibrillation Devices ◈ ◈
      Electronic Component Shielding ◈ ◈
      Electrostatic Discharge Protection ◈ ◈ ◈ ◈
      Flexible Circuits Sensors ◈ ◈ ◈
      Pressure Mapping Sensors ◈ ◈ ◈
      Radiology/MRI Shielding ◈
      Wearable Medical Devices ◈ ◈ ◈

    • Security

      Applications Knits Wovens Non-Wovens Hook & Loop
      General Architectural Shielding ◈ ◈
      Mobile Device Protection ◈ ◈ ◈
      Pop-Up Tents and Shelters ◈ ◈ ◈
      SCIF Protection ◈ ◈
      Shielded Bags/Cases/Pouches ◈ ◈ ◈
      Smart Garments ◈ ◈
      Wi-Fi Signal Isolation ◈ ◈

    • Telecommunications

      Applications Knits Wovens Non-Wovens Hook & Loop
      Cable and Harness Wraps ◈ ◈ ◈
      Cell Tower Base Station Shielding ◈
      Conductive Ground Plane ◈ ◈ ◈
      Dielectric Safety Test Liners ◈
      Electric Component Shielding ◈ ◈ ◈
      EMI Gaskets ◈ ◈ ◈
      RF Reflection ◈ ◈ ◈
      RF Shielding Blankets and Barriers ◈ ◈ ◈
      Server Room/Data Center Shielding ◈ ◈
